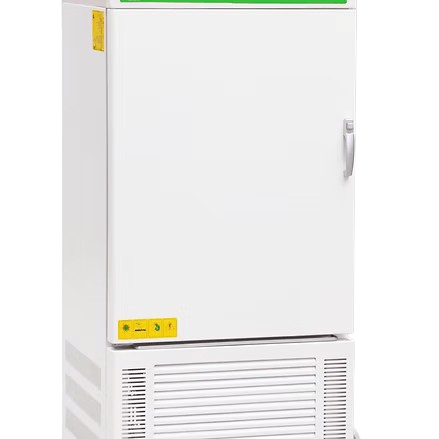

Cooling Incubator
HBIO cooling incubators are widely used in environmental protection, epidemic prevention, workstock, chemical pharmaceutical, drug test, fishery and other areas of research and production. It is the specialized thermostatic equipment for water analysis, BOD test, and bacteria, moulds and microorganism cultivation and storage, as well as plant cultivation and seed-breeding test.
HBIO cooling incubators are widely used in environmental protection, epidemic prevention, workstock, chemical pharmaceutical, drug test, fishery and other areas of research and production. It is the specialized thermostatic equipment for water analysis, BOD test, and bacteria, moulds and microorganism cultivation and storage, as well as plant cultivation and seed-breeding test.
Stainless steel inner chamber; Foursquare semicircle transition, convenient to clean; Space between shelves is adjustable.
Micro-computer control system; LCD with functions of time setting, parameter memorizing and power reset recovering.
Fluoride-free refrigeration and gentle breeze circulation.
Test hole of 52mm at left side of container.
Double door seal; Tempered glass silicon rubber seal inner door and magnetic rubber seal outer door, which are convenient to on/off; Inner chamber with light for convenient observation.
Functional features:
Intelligent programmed temperature controller with programs of 30 sections to ensure timing, repeated or multistep running of temperature system.
Function of self-diagnosis, sensor fault alarm and over temperature protection.
No freezing thanks to intelligent refrigeration and defrosting system.
Function of auto running, auto stopping and timing running, as well as parameter memorizing, power reset recovering and temperature display revising.
Watch timer and independent temperature safety device, which automatically break off when over temperature limit.
| Model | Standard form | Functional form | ||
|---|---|---|---|---|
| HBCI-70BIII | HBCI-150BIII | HBCI-70BX | HBCI-150BX | |
| Voltage | 220V/50Hz | |||
| Temp. Range (°C) | 0-65°C | |||
| Temp. Resolution Ratio (°C) | 0.1°C | |||
| Temp. Motion (°C) | ± 0.5°C | |||
| Temp. Uniformity (°C) | ± 1°C | |||
| Power (W) | 300 | 500 | 300 | 500 |
| Coolant | R134a | |||
| Ambient Temp. (°C) | 5-30°C | |||
| Inner Chamber Size (mm) | 420×350×500 | 500×400×750 | 420×350×500 | 500×400×750 |
| Exterior Size (mm) | 570×560×1200 | 640×620×1270 | 570×560×1200 | 640×620×1270 |
| Packing Size (mm) | 730×730×1170 | 820×760×1430 | 730×730×1170 | 820×760×1430 |
| N. W. (Kg) | 59 | 68 | 59 | 68 |
| G. W. (Kg) | 85 | 97 | 85 | 97 |
