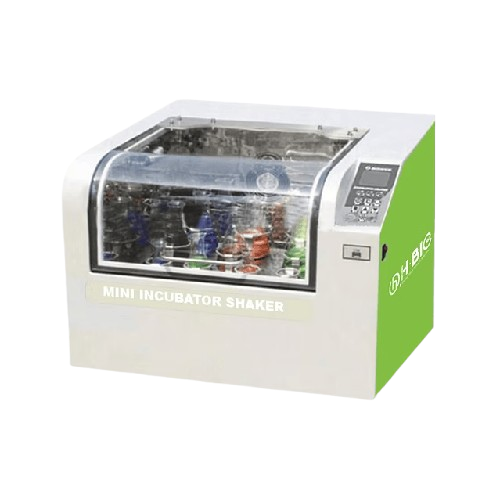

Tabletop Incubator Shaker
HBIO benchtop incubator shakers offer small capacity growth of biological organisms under optimum conditions of temperature, time and agitation. This microprocessor controlled shakers offer a number of advanced features include user-friendly digital setpoints control panel, overtemperature alarm and self-correcting feedback controls on temperature
and shaking speed. HBIO benchtop incubator shakers are best suitable for your in-vitro cell research.
HBIO benchtop incubator shakers offer small capacity growth of biological organisms under optimum conditions of temperature, time and agitation. This microprocessor controlled shakers offer a number of advanced features include user-friendly digital setpoints control panel, overtemperature alarm and self-correcting feedback controls on temperature
and shaking speed. HBIO benchtop incubator shakers are best suitable for your in-vitro cell research.
Power-off Recovery Function
System continue to operate the program after power restoration followed by a power failure.
Large LCD Display
The large LCD screen clearly indicates the preset and real time parameters.
The large toughened glass window allows user to view through eyes directly.
Precision Control
P.I.D controller with full audio and visual alarm for safety and operations,
The operating parameter locked by encryption ensures reliable operation.
Operating parameter memory function ensures continues operation after interruption.
Over-temperature audio and visual alarming function can automatically cut off the power when the motor overheated, temperature out of control or abnormal temperature occurs.
AC inductive long-life motor design, broad speed regulation, constant torque, constant speed of rotation, no carbon brush and maintenance free.
| Model | HBIS-200D |
|---|---|
| Control mode | P.I.D microcomputer processing chip |
| Convection mode | Forced convection |
| Oscillation mode | Convolution |
| Display | LCD display |
| USB data download system | Yes |
| Cyclotron frequency range | 30-600 rpm/min |
| Cyclotron frequency accuracy | ±1 rpm |
| Shake plate shimmy range (mm) | Ø0-50 |
| Max configuration | 100ml*23 / 250ml*12 / 500ml*9 / 1000ml*5 |
| Standard configuration | 500ml*3, 250ml*4, 100ml*5, 50ml*5 |
| Pallet size (mm) | 410*360 |
| Timing (h) | 0-999 |
| Temp. range (°C) | Apr-60 |
| Temp. accuracy (°C) | ±0.1 |
| Temp. uniformity (°C) | ≤0.5 (37°C) |
| Temp. fluctuation (°C) | ≤0.2 (37°C) |
| Pallet number | 1 |
| Size (mm) | 740*710*510 |
| Volume (L) | 70 |
| Power (W) | 650 |
| Voltage | AC220±10% 50-60Hz |
| Ambient temp. (°C) | 5 to 25 |
